Change the
Fertilizer Industry with the help of the fertilizer industry.
TKI, Tessenderlo Kerley Inc.,
is a major contributor to improved nutrient efficiency with Exactrix
TAPPS.
CPS sees the need for change.

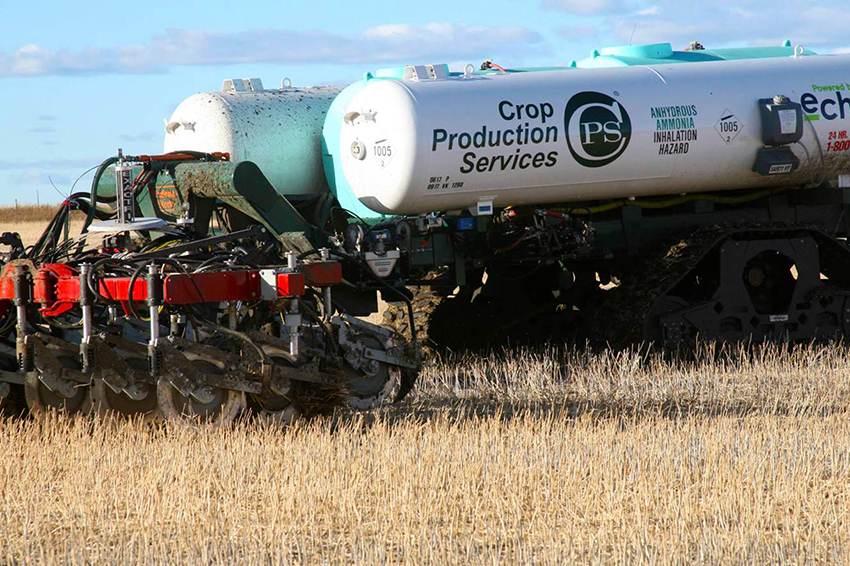

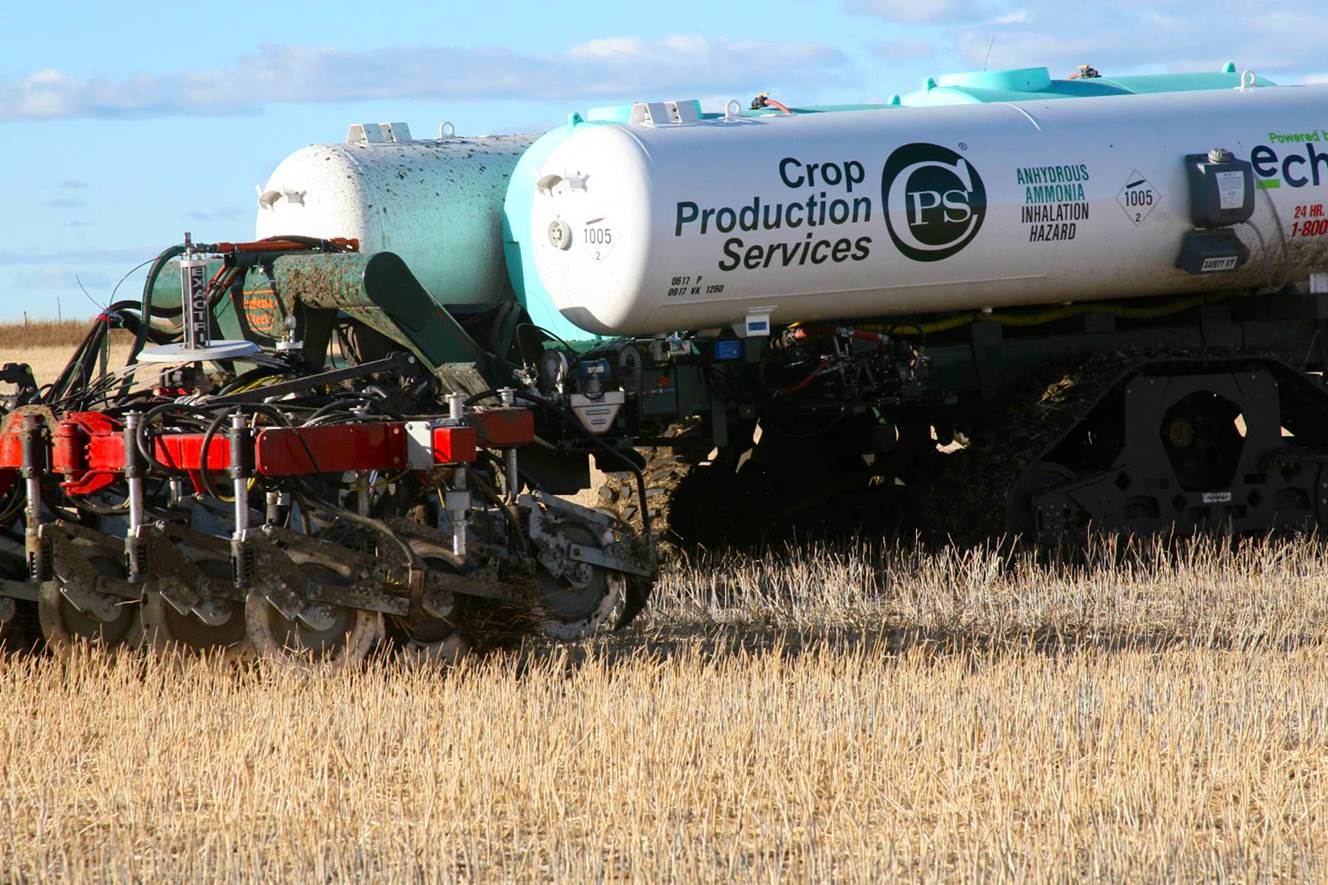

Exactrix at work at CPS, Mid October, 2017 in Grand Prairie,
Alberta. Big Red makes inroads with TAPPS and TAPPKTS.
A true story of the Pioneer West.
Inclusive
story of the Pinned Martin Brothers at page 25.
- From Grand
Island Nebraska: “they were Haymakers before they were
Huskers.”
- They lived
to tell about it.
- The Narrow
Escape.
Running with the best. Paul Gangwish, Shelton,
Nebraska. April 11, 2018
Rolling Center Pivots ( up to 20% in single angle and
compound slopes to 30%) in No-tillage application of Exactrix TAPPS.
- The heavily
compacted truck parking lot got a tillage treatment.
- The center
pivot tracks also get reworked about 3 feet wide in No-till.
The largest.
- The Big 620
Case Quad Tractor in, Hill climbing Mode, was burning 34
gallons per hour straight up the hill at 7.5 mph on the Exactrix
TAPPS application.
- At
sunset….The rolling hills location is North of Shelton, Nebraska
on April 11, 18. PG Farms.

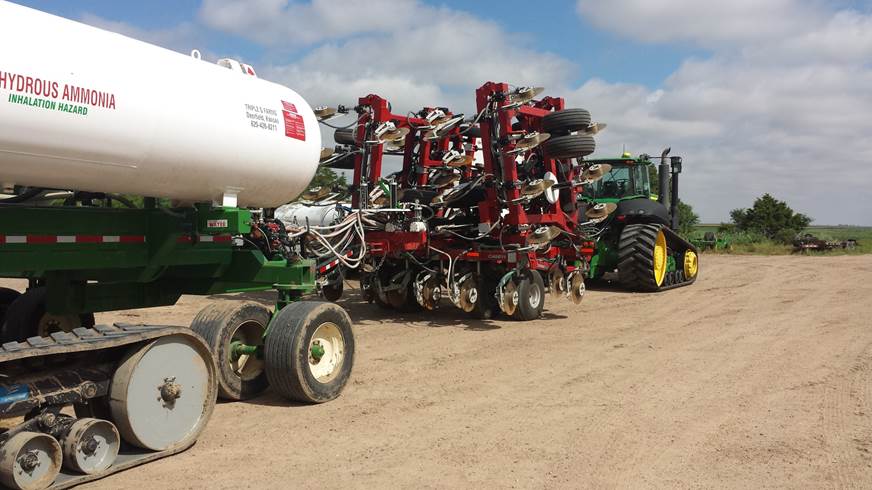

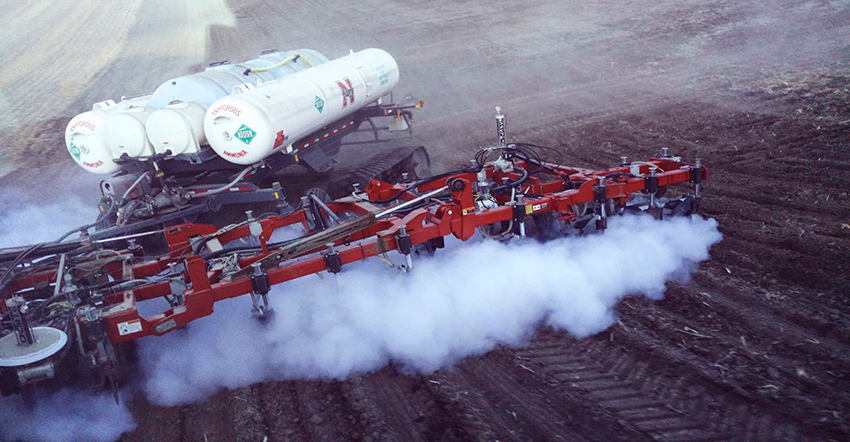

- The Big
Red, Case 940 Tool Bar is at 61.25 feet. 49 opener bands at 1%CV
in liquid streaming flows.
- Making
uphill turns on 20% compound angles with 100,000 lbs. behind the
tractor.
- Big Red is
an impressive combination in productivity.
- The Quad is
stock. No chip.
- The Quad
has been running good at low cost.
- The KD
Track Cart has had a few encounters with the terrain of rolling
Nebraska.
- The 100,000
lb. cart with high floatation can be pushy in downhill turns.
- It is
powerful combination at 1 acre per minute at 8.1 mph.

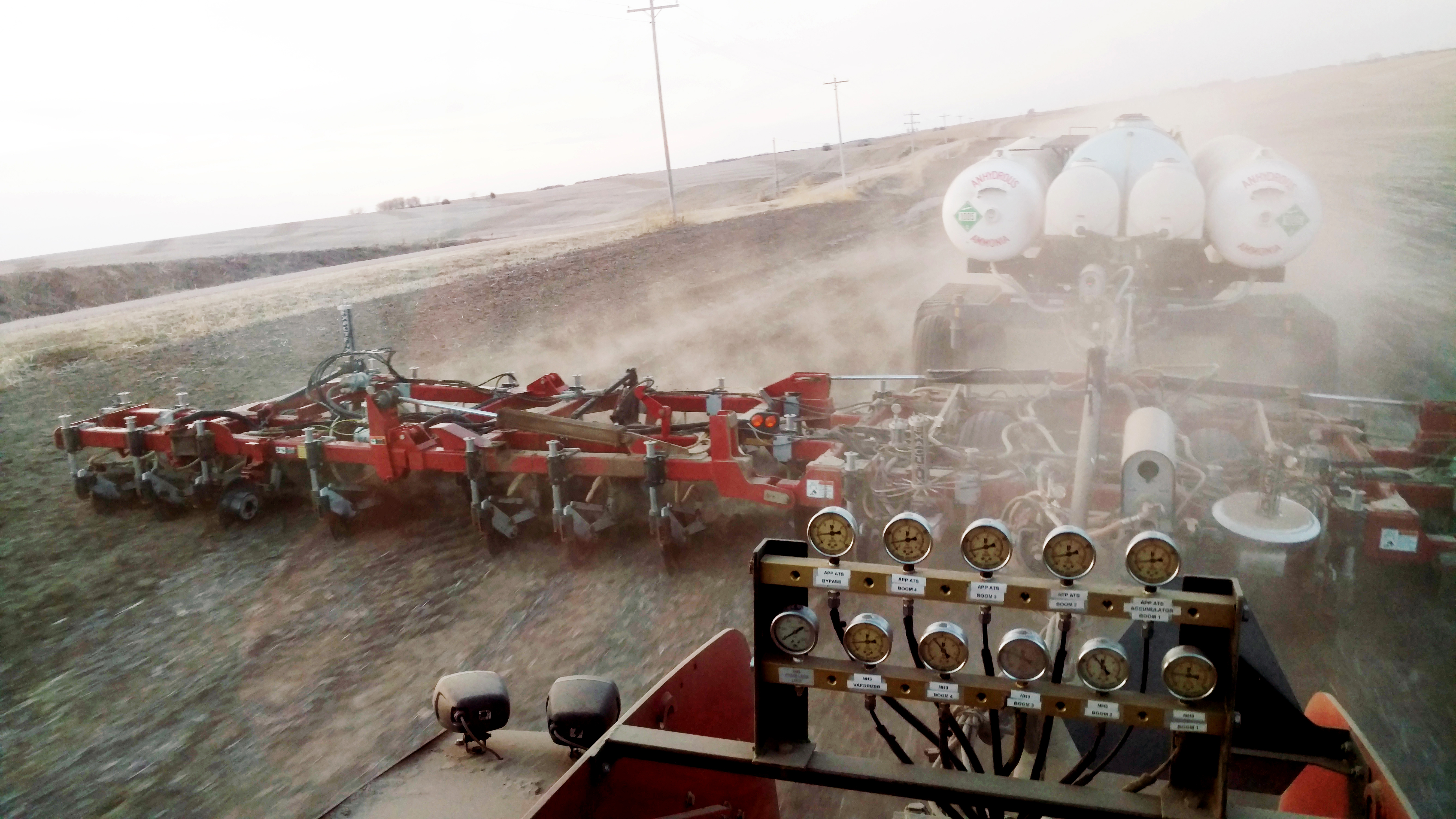

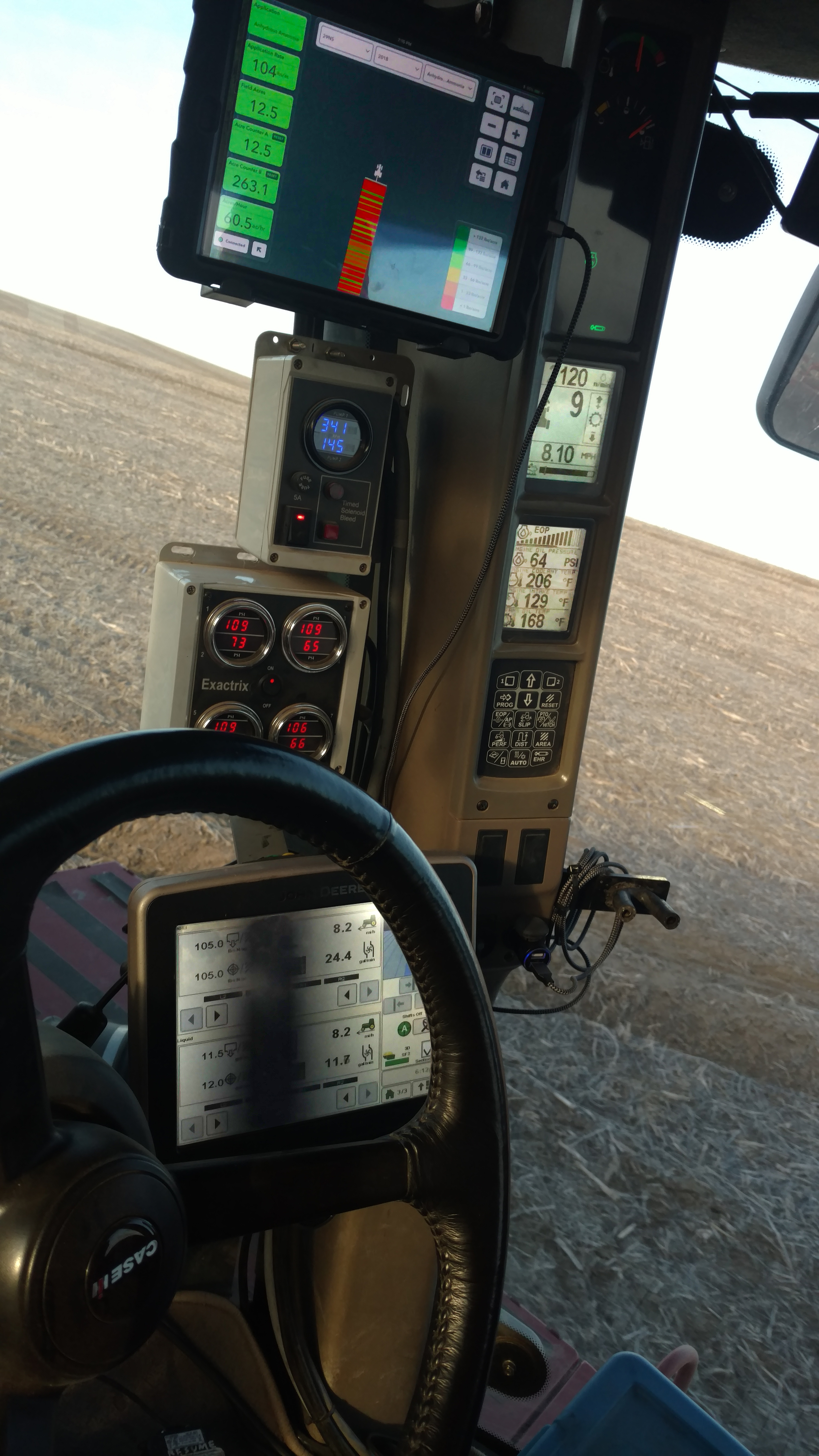

The operator uses information
similar to a pilot.
- The operator scans all the panels constantly
in VRT-Site Specific with positive displacement Exactrix pumps
with Mass Flow.
- The Exactrix Predictable flow curves allow
the operator to double check VRT-Site Specific zones by pump rpm.
- Using Mass meters the information is totally
repeatable at .002.
- Accurate within 20 lbs. on 10,000 lbs.
applied, at 1% CV in liquid streaming flows.
- A total of 8 pressure readouts the pressure
gauges check 4 section balance.
- The unique German/USA components for the
pressure gauging system can spot a dysfunction orifice using mass
meters and PD pumps to confirm.
- The 8 pressure readouts and pressure signal
indicated an orifice change was required on the liquid side to
raise application pressures to 200 psi at 17.25 gallons per
minute.
- Climate is also on board.
Testing and resetting the
Look Ahead feature in 4 section design.
Making a 20% uphill turn was easy work for the
Big Red and the surefooted 620 Case Quad Track.
Sunset on the Great Plains.
Watch Big Red run strong on some of the highest
quality farmland in North America.
https://vimeo.com/bandbvideo/review/162428756/c562a9070d
Mustangs Banding deep at 8
inches allows No-tillage double cropping corn at Garden City.

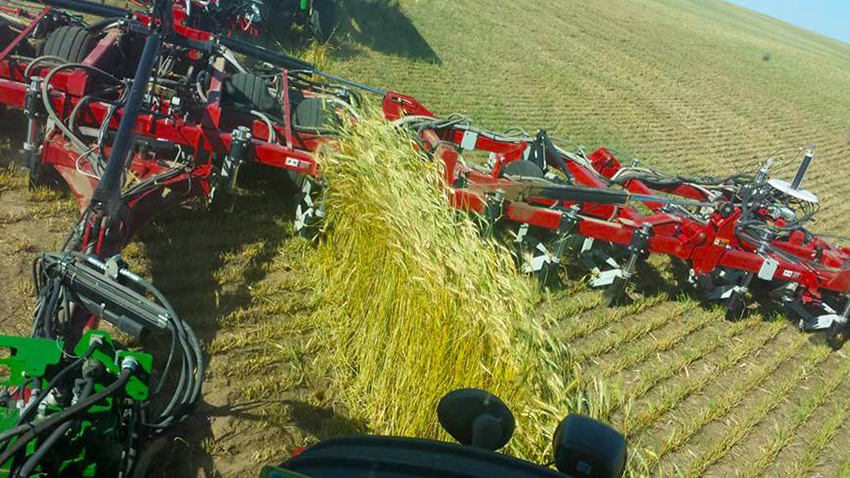

Coming back quick on Green-chop Triticale in
late May.
http://exactrix.com/Broadcast_11_28_2016.htm

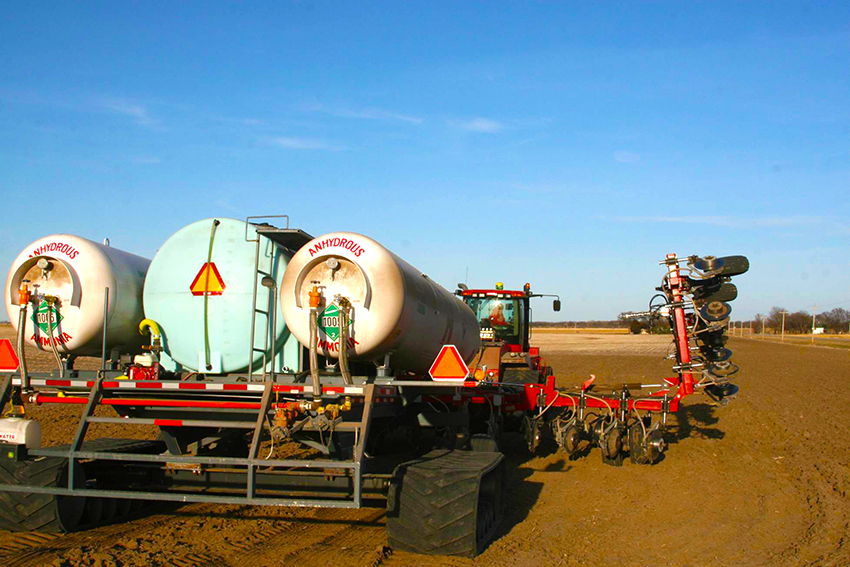

Exactrix Mustang Case 940 Tool Bar at Garden City.
Maximum performance on
tracks. 61.5 feet Mustangs on 15 inch band spacing.
Also producing in 30 inch spacing in Nebraska
Manure programs.
https://vimeo.com/bandbvideo/review/217536668/20cc923ba3
Spring Application
Case 940 Mustang Tool Bar in Tillage at Beemer, NE.
https://www.youtube.com/watch?v=eosk0e9cvBM&hd=1
Yields at Harvest.
2108, Gangwish Seed Farm. Close to the Platte River
with the story of the Martin Bros. in 1864.
https://vimeo.com/bandbvideo/review/162609745/b8a4c47ab2
Take a look with a drone overview of the area.
- Shelton,
Nebraska.
- Exactrix
Mustang, TC bar with P-51C, Chrome Insert, Replaceable Bit.
- TAPPS
formulator, 4th Season.
- Moves $60
to $150 per acre additional Net Income right to the Bottom Line.
- Exactrix
TAPPS “Stops the Fertilizer Bill Explosion”. Keeps the
2018 Fertilizer Bill around $64.00 per acre.
Double Rank.
- Penetrates
easier.
- Runs fast
without plugging taking less tool bar down pressure.
- Sealed
Bearings.
- Caterpillar
Duo Cone seals in the hubs using Timken Pinion bearings rated to
3,500 lbs.
- Swedish
Manganese Steel Blades for long life and good polish.
- The High
Water Mark, Exactrix Global Systems.
- Reduces the
Fertilizer Bill to the Lowest levels achievable for maximum
yields.
- Changes the
Fertilizer Industry with the help of the Fertilizer Industry, TKI,
Thio-sul®.

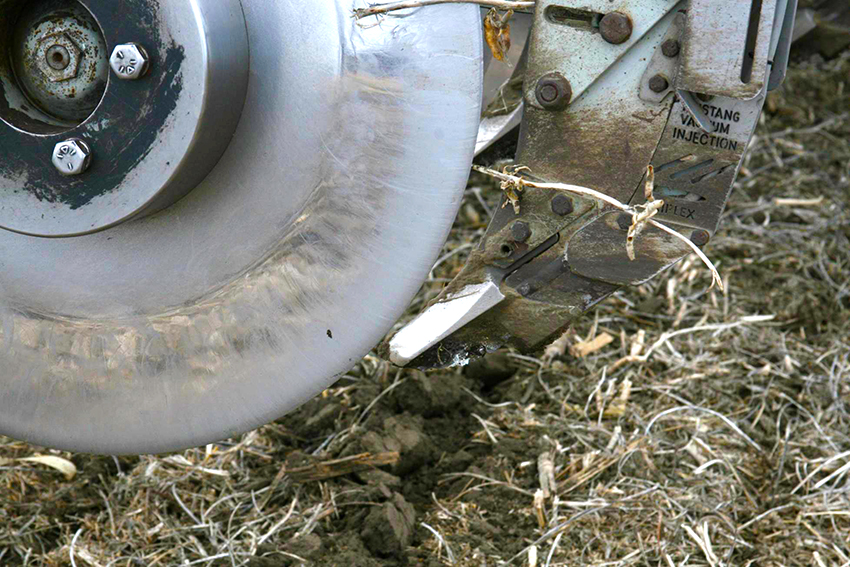

Chrome Replaceable Insert.
- Wear Part,
3/8 x 24 extreme double edge blades…allows operation at 75 cents
per acre on 30 inch spacing or double at 15 inch spacing.
- Extreme
Wear blade option at ½ x 25 in Extreme double edge.
- Operating
range is 8,000 to 10,000 acres at 30 feet.
- Wear Part,
YC Chrome insert is $25.70 and runs about 20,000 acres or 15 cents
per acre. New 2018 design with more high wear YC chrome.

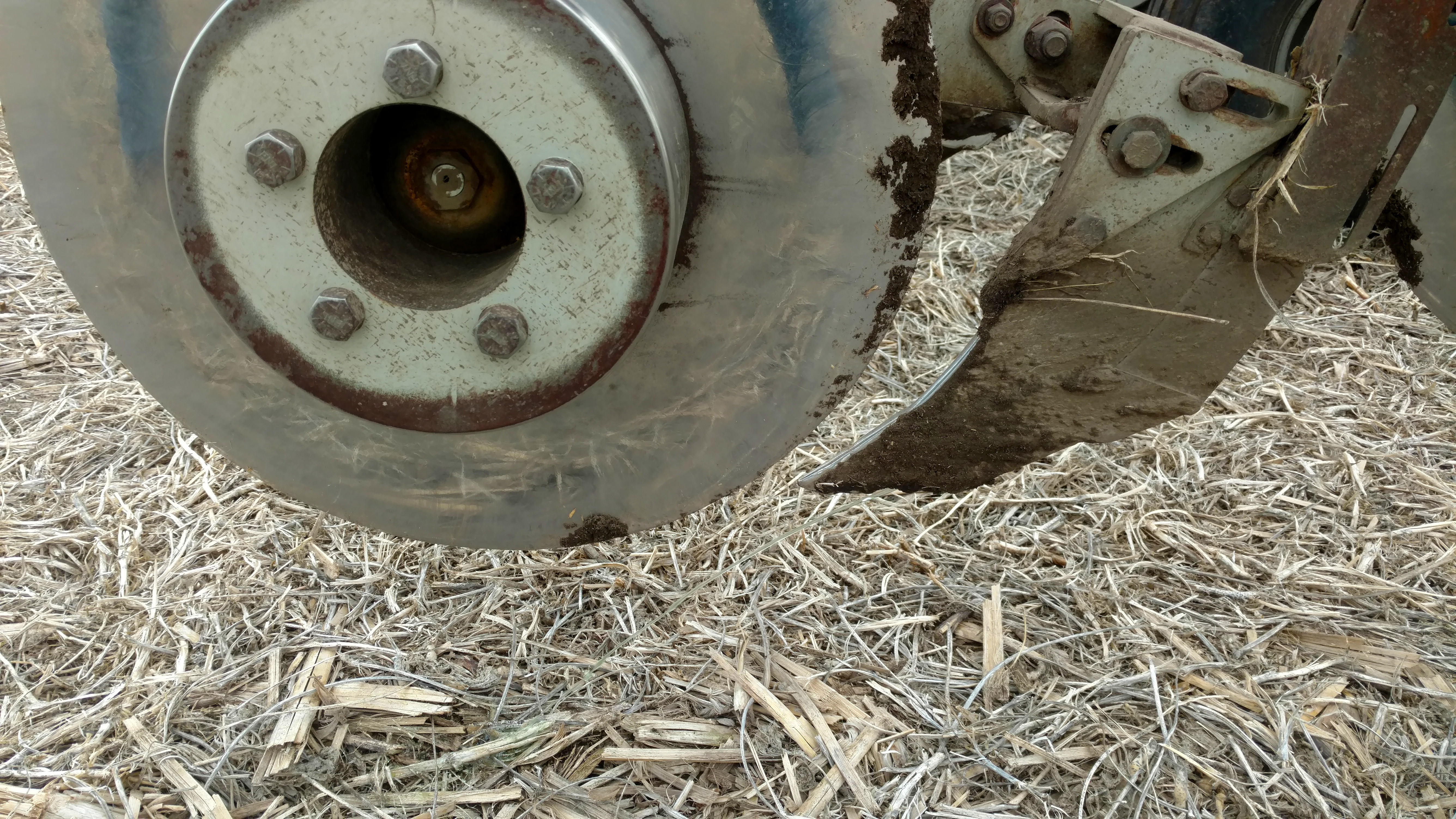

- Operates at
the 2 inch depth as shown by the cleaning of the chrome tool.
- On 15 inch
centers Operates for $1.25 to $1.65 per acre. On 10 inch centers
the opener operates at $2.50 per acre. On 7.5 inch spacing .75
cents per acre. Beats a Deere 2510 by 5 times lower operating
cost.
- Tool Bar
has positive down pressure on the wings using in frame hydraulic
cylinders.
- Step
openers released in 2017. No frame set backs are required.
- TAPPS
crystals formed at 1%CV of application in streaming flows.
Mustangs Band
Deep and run fast to 12 mph.
https://vimeo.com/bandbvideo/review/162609745/b8a4c47ab2
Follow the application with a great
drone video.
April 11, 18, North of Shelton,

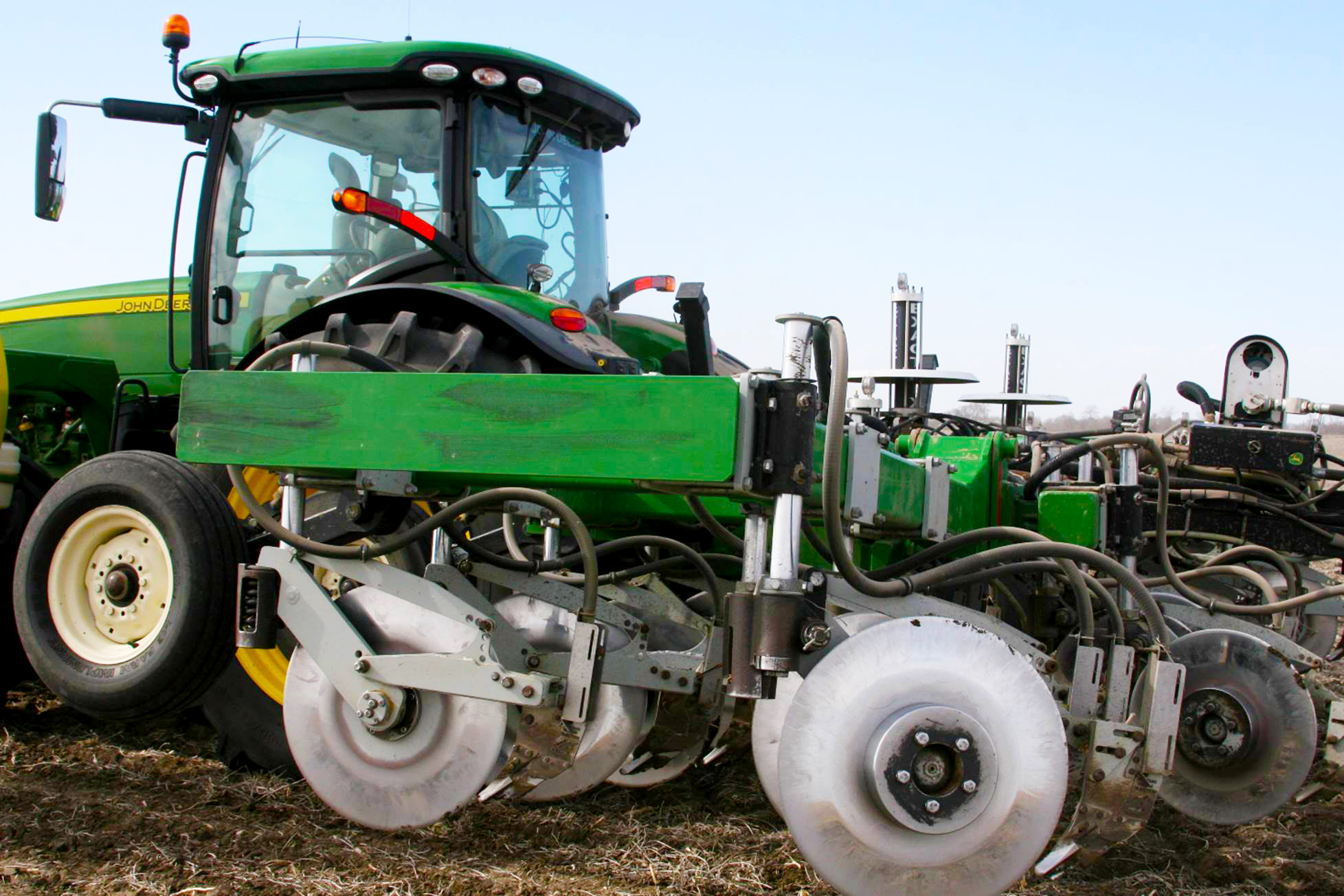

- No double
closing wheel required no depth control wheel required.
- Swiveling
opener allows sharp turning with openers in the ground at corners
and lands.
- Banding
twice as deep as the Deere 2510.
- Takes a lot
less horsepower with lowest soil movement

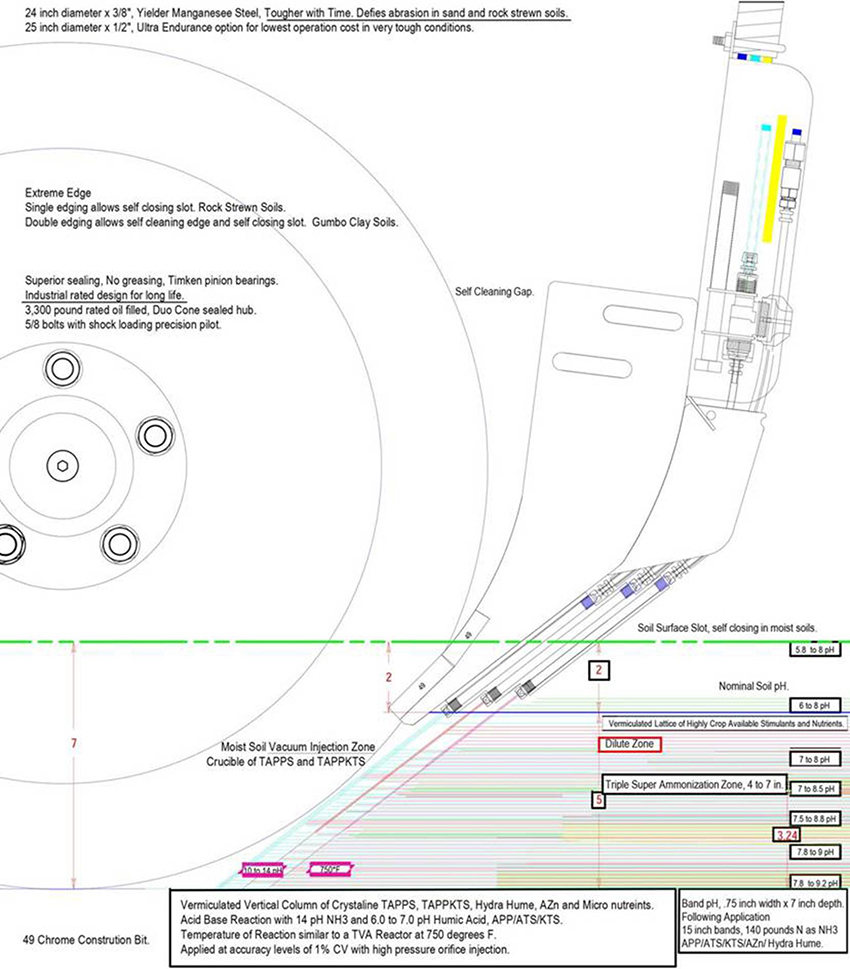

- Uses 150 to
300 psi pressure of injection to vermiculate the two reactive
materials and drive the band into the 2 to 7.5 inch depth.
-
Vermiculation of TAPPS at 1% CV.
- Top rate of
N is 140 lbs. N as NH3. Starting the 4th season with excellent
yield results using VRT-Site Specific.
- Allows 1%
CV of application and powerful VRT Site Specific application.
- Operating a
4600 Deere Controller. New Tractor.
- Kept the
4th season tires. Good Tires, Good Ride.
- Quiet Cab
at .4 to .5 gallon Diesel per acre.
- Stock with
no chip.
Smooth Rider.
- Easy on the
Diesel Fuel based on per acre costs at 7.5 mph.
- Rated to 12
mph with a larger NH3 bottom outlet tank valve.

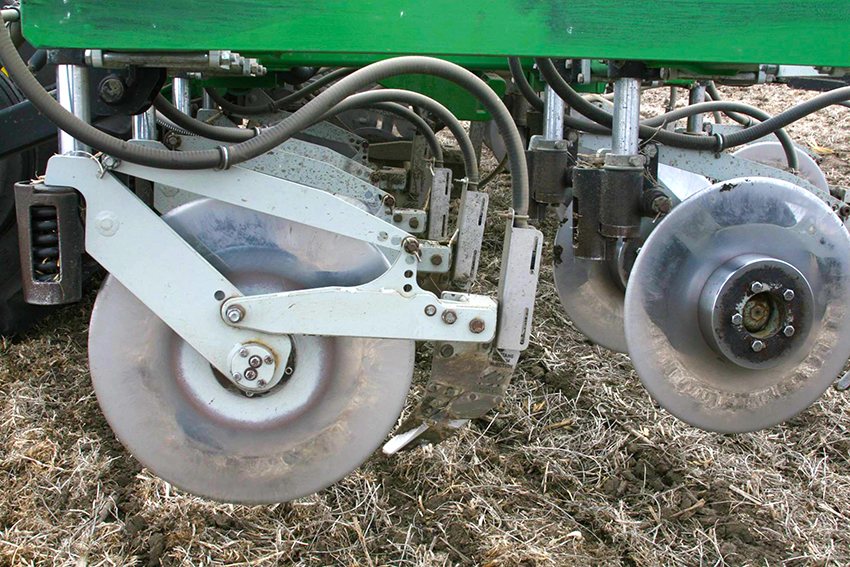

Openers Turn in the Corners.
- RTK
steerage,
- Tool bar is
positive down pressure.
- The Tool
Bar easily corrects based on the tractor movement.
- Tractor
movement with openers 7.5 inch depth requires a swivel action
opener.
- It happens
all the time, try shifting 15 or 30
inches in the dirt with fixed angle Deere 2510 and you will have a
parts bill.
- Tested in
lots of conditions, and No-tillage is
the result on 15 inch centers.
- Front axle
is always engaged with slippage is Zero to 2%.
- The power
goes into the ground with the excellent tractor balance.

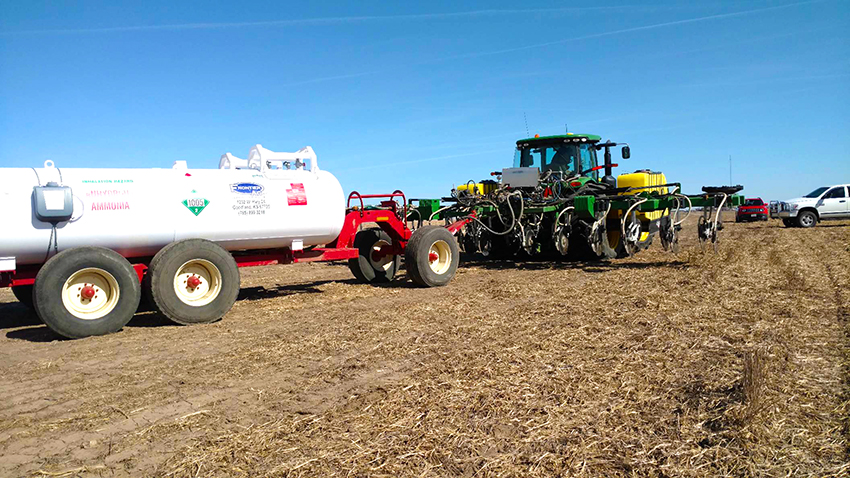

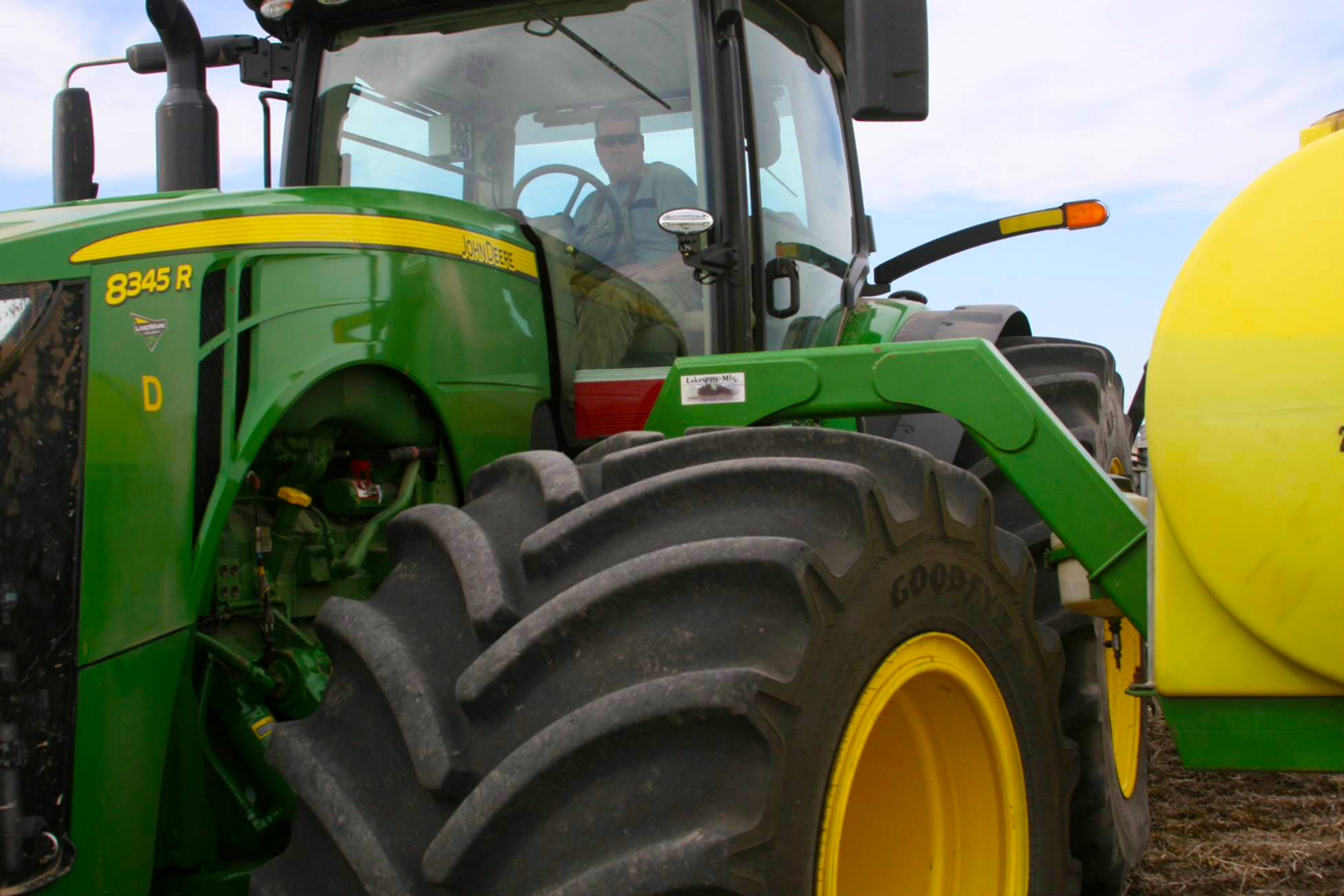

A total of 72,000 lbs. A good
tractor tank design with 12,000 more lbs. of liquid in the right
pulling power spot, which improves load balance for 345 horsepower
going directly into the ground.

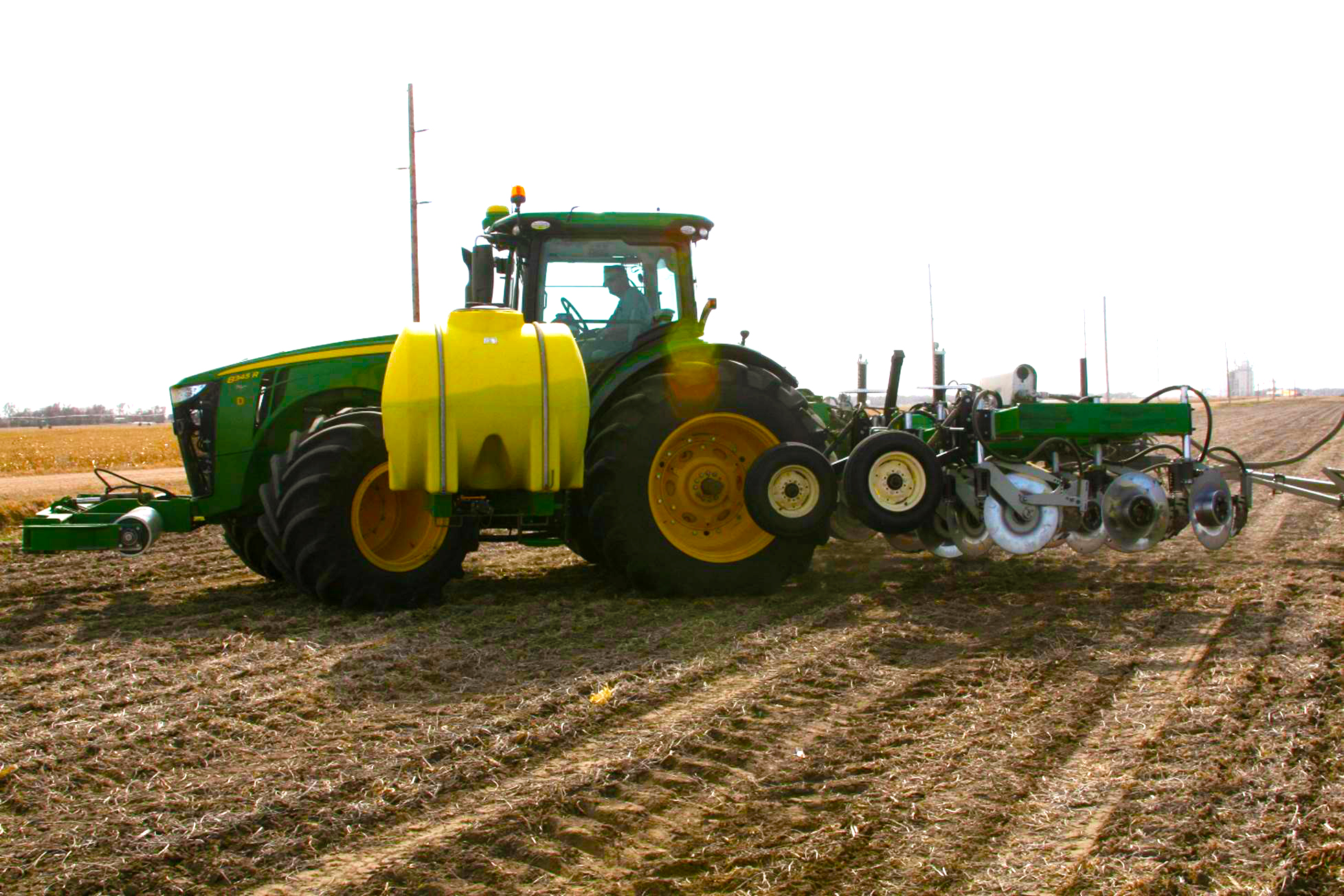

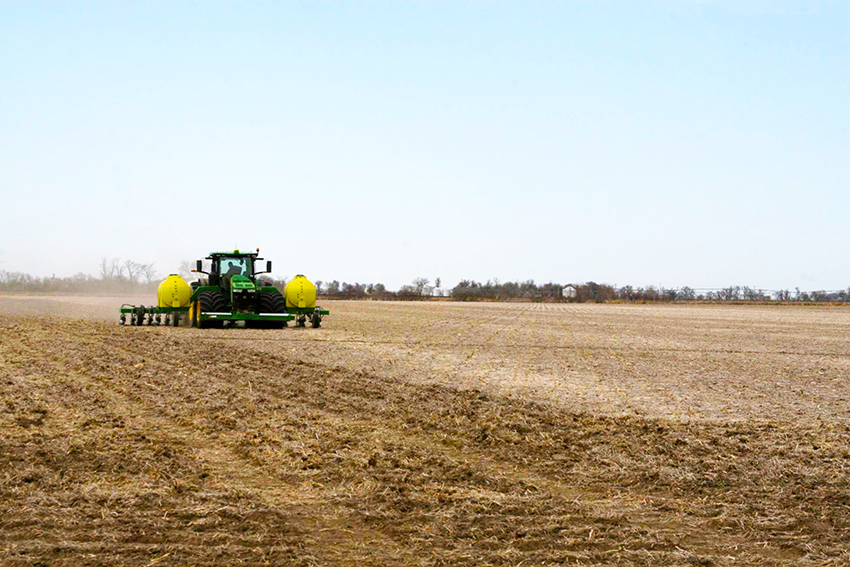

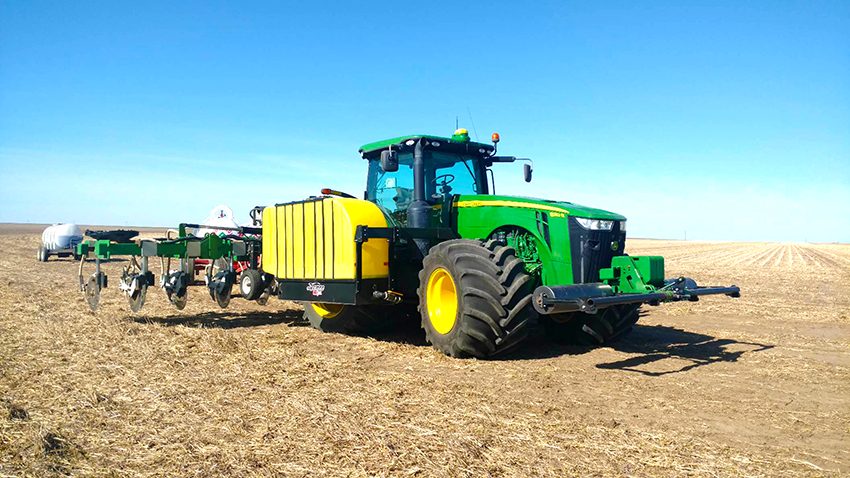

Exactrix Mustang on 15 inch band spacing.
- Operating
at 7.5 mph , 2,000 gallon NH3 tank. Hydraulic winch for tank.
- Exactrix
2KC Series 2 and 2KP Series 2 formulating TAPPS.
- Running
with 3 planters right behind the application.
- Banding to
7.5 inch depth.
- TAPPS at
125 lbs. N and 12 gallons of APP/ATS.
- VRT range
105 to 140 lbs. N as NH3.
- 2 miles
North and 2 miles east of Shelton. April 12, 18.
- Matt and
Randy Gangwish, Gangwish Seed farm. Doing about
4,000 acres of
commercial corn and seed corn this spring.
-
www.exactrix.com/mustang.htm
for more information and rating of the P-51B, P-51C and P-51CUE.
A True Story of the West. Nebraska Tough. Haymakers
before Huskers.
The Martin
Bros. August 1864. At Grand Island/Doniphan, Nebraska Territory on
the Great Platte River Road of the Oregon and Mormon Trail.
Location for
this great story was insight of the Pony Express at Lowell, Nebraska
where the Pony Express station may have ordered the hay from time to
time.
On April 10th
2018, Grand Island/Doniphan is in farming country. You can go 7
miles West on a warm August Day on the Tall Grass Prairie and find
the site. I think that would be quite a reenactment venue.
The Cheyenne
and Sioux were mean Indians in the Platte Valley saving their
Homeland, the Indian Brave marauders attacked the Civil War era
early pioneers.
Congrats to
Bosselman Energy, Fred Bosselman has done a wonderful thing.
It is 1864
this is About 5 years before the Homestead Act, with the first
Homestead in the reunited Union of the USA at Beatrice, NE,
and the Golden Spike was also coming and Nebraska became a
state in 1867.
Making Hay in
August on the banks of the Platte River at 100th
Meridian.
The tracks of
the Union Pacific were coming. And soon by 1880, Orphan Trains
would arrive from New York City supplying additional boys and girls
to Nebraska families.
Nebraska has
tough boys and girls with a big heart.
Working with
their Father George making hay for the Oregon Trail convoys…..when
Indians attacked….the pinned brothers were left for dead as they
fell from their escaping horse.
The boys were
discovered alive the next morning.
Age 12 Robert
is in front and age 15 Nathaniel is in back taking the first
penetrations and protecting his younger brother…they lived to 47,
Robert and 79 , Nathaniel. The Martin Brothers were heroes of the
west with prospering families in the Nebraska Tough conditions.
No wonder
Father Flannigan liked boys with brothers,
with his location on banks of Platte River Valley.
https://www.roadsideamerica.com/story/16183
40°48'03.04" N 98°26'23.88" W
40°46'16.90" N 98°29'41.38" W
About 52 Exactrix Owners in this
area.
More valuable results coming from KSU, TKI, Exactrix
and Greg Sederstrom.
- RTK guided,
Test Plots at Goodland, KS
- Greg
Sederstrom, KSU, TKI, Exactrix.
- 2.5 hours
to lay in the STEEP plots in 16 reps and randomizations.
- Took a
lifetime to plan. Bert Bock, Guy Swanson, Greg Sederstrom, AJ
Foster.
- Binary and
Equilateral Banding of Exactrix TAPPS.
- High
quality pivot at 650 GPM along I-70 at
the Rest Stop, Road 10.
High Floatation putting power directly into the
ground in No-till.
- High flow
capacity
- Mustang
Tool Bar at 20 feet, 15 inch band spacing. Banding deep at 8 inch
depth.

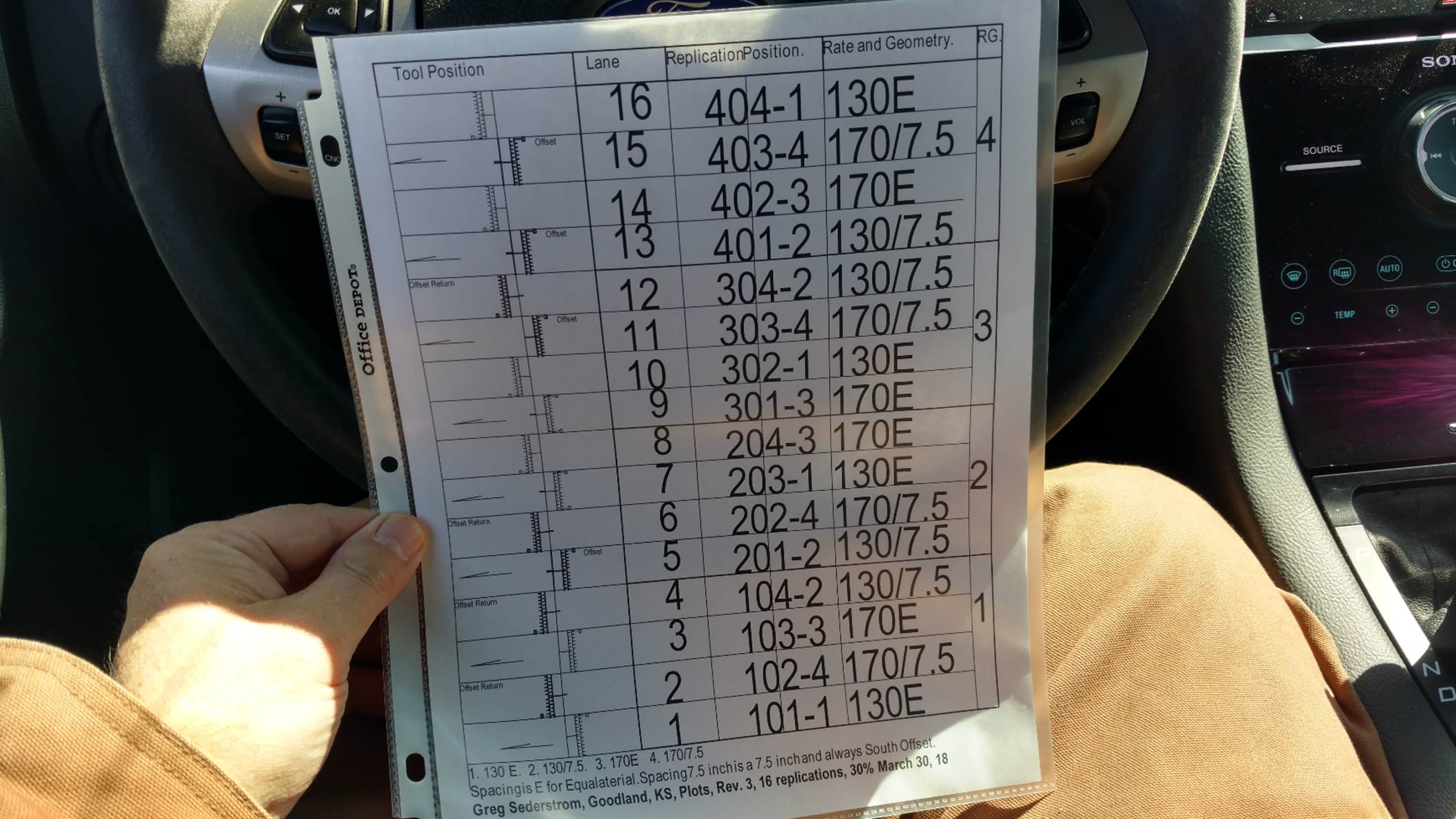

Plot design.
The world’s best scientists and engineers are working hard to find a
better way.
Compaction should not be significant. Ideal
conditions on April 5, 2018.
- Floater
Tires make a big difference at 7.5 mph with Zero slip.
- Field
and Test Reports with
weather helping the overall composite are coming up at the Colby
Meeting Dec. 6, 2018.
Your Great Plains Reporter.
Guy J Swanson
|
